Key words
- Product Description
- Product Video
-
Descriptions
The unit is designed for automatic loading of unpopulated LED board's onto the line using suction cups. The top PCB is lifted from stackand lowered onto belt segment.Also it can be used as a bare board unloader.
Standard features PanasonicnPLC Program control. Large stock capacity.
Empty stack sensor.
Flexible suction cup positioning. Convenient front door stack loading. Towerlight display for machine status. Automatic width adjustment.
Auto-correct feature to ensure board lowering onto belt smoothly. By-pass mode selectable without removing PCB stack.
SMEMA compatible.
Technical specifications
Transport height: 910mm ±30mm
Transfer direction: Left to right
Operation side: Front of the machine
Fixed rail: Front of the machine
Interface: SMEMA
Conveyer concept: ESD flat belt
Belt speed 0.5-20m/min adjustable
PCB edge support: 4mm
Components clearance: Top 30 mm, bottom 30 mm
Power supply: 230 VAC/50 Hz/1 Ph
Power consumption: 150VA max
Air supply: 4-6 bar
Air consumption: 10 ltr/min max.
Diameter sictopm pads: 15mm or specify
PCB thickness capability: 0.6-4.5mm
PCB stock capability: 160pcs specify(1.6mm)
Customized function
Safety relay to meet CE requirements.
Conveying speed & timeout can set on touchscreen.
Data exchange and communication with other our machines.
Model No
TN-XB600
TN-XB1200
Machine Dimension (L x W x H)
800x 1050x 1250
1400x 1050x 1250
Weight
180kg
260kg
PCB L x W ( Min~Max )
(60 x 60)~(600 x 350)mm
(60 x 60)~(1200 x 350)mm
PCB Thickness
0.6mm – 4.5mm
0.6mm – 4.5mm
Fixed rail to front dimension(A)
550mm
550mm

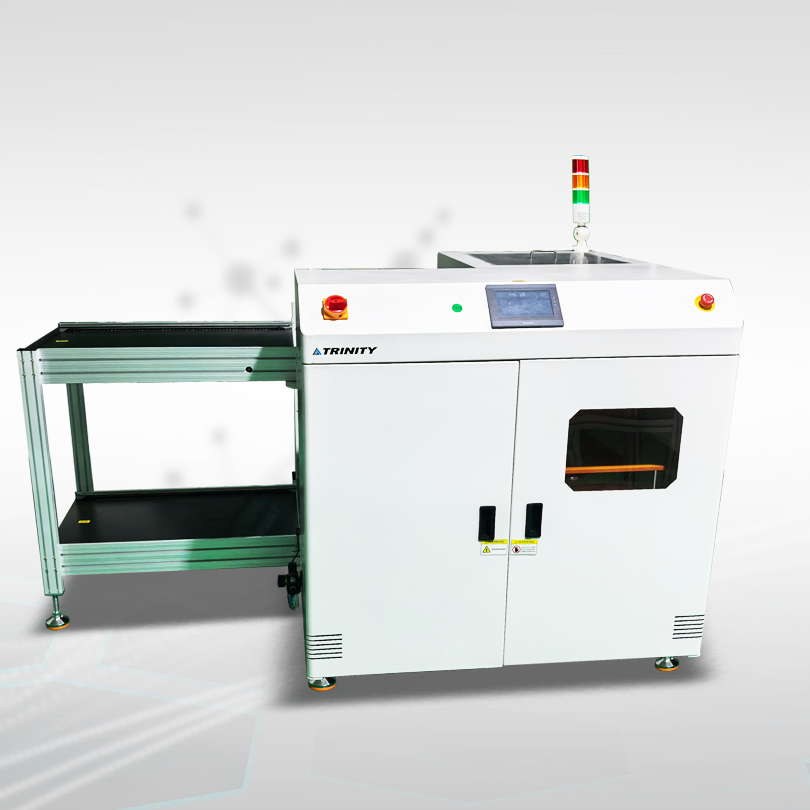

LED Vacuum Bare Board Loader
- Product Description
- Product Video
-
Descriptions
The unit is designed for automatic loading of unpopulated LED board's onto the line using suction cups. The top PCB is lifted from stackand lowered onto belt segment.Also it can be used as a bare board unloader.
Standard features PanasonicnPLC Program control. Large stock capacity.
Empty stack sensor.
Flexible suction cup positioning. Convenient front door stack loading. Towerlight display for machine status. Automatic width adjustment.
Auto-correct feature to ensure board lowering onto belt smoothly. By-pass mode selectable without removing PCB stack.
SMEMA compatible.
Technical specifications
Transport height: 910mm ±30mm
Transfer direction: Left to right
Operation side: Front of the machine
Fixed rail: Front of the machine
Interface: SMEMA
Conveyer concept: ESD flat belt
Belt speed 0.5-20m/min adjustable
PCB edge support: 4mm
Components clearance: Top 30 mm, bottom 30 mm
Power supply: 230 VAC/50 Hz/1 Ph
Power consumption: 150VA max
Air supply: 4-6 bar
Air consumption: 10 ltr/min max.
Diameter sictopm pads: 15mm or specify
PCB thickness capability: 0.6-4.5mm
PCB stock capability: 160pcs specify(1.6mm)
Customized function
Safety relay to meet CE requirements.
Conveying speed & timeout can set on touchscreen.
Data exchange and communication with other our machines.
Model No
TN-XB600
TN-XB1200
Machine Dimension (L x W x H)
800x 1050x 1250
1400x 1050x 1250
Weight
180kg
260kg
PCB L x W ( Min~Max )
(60 x 60)~(600 x 350)mm
(60 x 60)~(1200 x 350)mm
PCB Thickness
0.6mm – 4.5mm
0.6mm – 4.5mm
Fixed rail to front dimension(A)
550mm
550mm
