Key words


  • Product Description
  • Product Video
  • Descriptions

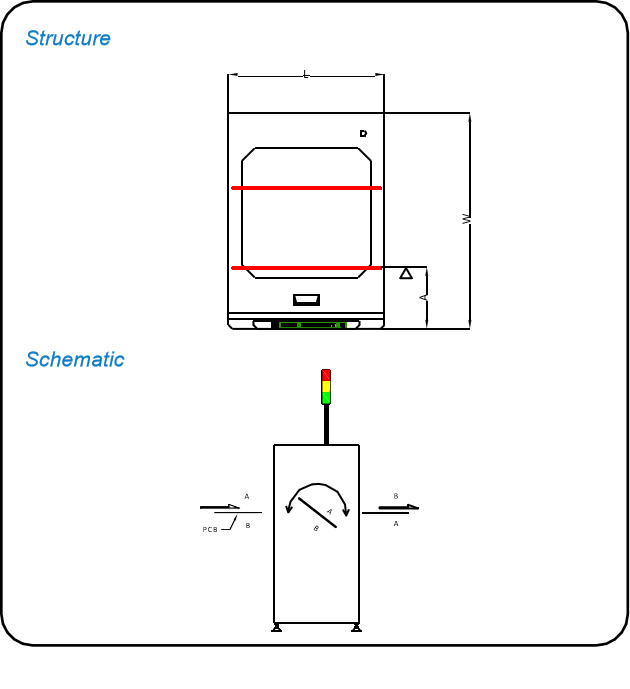

    This unit is used to invert / flip PCB's (180°) for 'double-sided'  process.


    Standard features PanasonicnPLC Program control. By-pass mode selectable.

    Pneumatic stopper to keep PCB in position during inverting.  Smooth and parallel width adjustment.(lead screw)

    Automatic width adjustment. (set in touchscreen)

    SMEMA compatible.


    Technical specifications

    Transport height:910mm+30mm

    Transfer direction:L eft to right

    Operation side:Front of the machineFront of the machine

    Fixed rail:SMEMA

    Interface:ESD belt (round or flat)

    Conveyer concept:ESD belt (round or flat)

    Belt speed :0.5-20m/min adiustable

    PCB edge support:4mm

    Power supply:230 VAC/50 Hz/1 Ph

    Power consumption:150VA max.orspecify

    Air supply:4-6 bar

    Air consumption:1.5 Itr/min max

    Cycle time:+8 seconds

    Options

    Cantilevered input- or output conveyor (length 500 mm)

    Other options available on request


Automatic Inverter Machine

  • Product Description
  • Product Video
  • Descriptions

    This unit is used to invert / flip PCB's (180°) for 'double-sided'  process.


    Standard features PanasonicnPLC Program control. By-pass mode selectable.

    Pneumatic stopper to keep PCB in position during inverting.  Smooth and parallel width adjustment.(lead screw)

    Automatic width adjustment. (set in touchscreen)

    SMEMA compatible.


    Technical specifications

    Transport height:910mm+30mm

    Transfer direction:L eft to right

    Operation side:Front of the machineFront of the machine

    Fixed rail:SMEMA

    Interface:ESD belt (round or flat)

    Conveyer concept:ESD belt (round or flat)

    Belt speed :0.5-20m/min adiustable

    PCB edge support:4mm

    Power supply:230 VAC/50 Hz/1 Ph

    Power consumption:150VA max.orspecify

    Air supply:4-6 bar

    Air consumption:1.5 Itr/min max

    Cycle time:+8 seconds

    Options

    Cantilevered input- or output conveyor (length 500 mm)

    Other options available on request
