Descriptions
This unit is used to link between production machines or board handling units.
Standard features Panasonic PLC Program control. Start / Stop push button.
Anti-static conveyor belt. Easy way of belt replacement.
Heavy bottom design to prevent shifting. PCB precise stopping in position.
Smooth and parallel width adjustment.(lead screw) SMEMA compatible.
Technical specifications
Transport height: Transfer direction: Operation side: Fixed rail: Interface: Conveyer concept: Belt speed
PCB edge support: Components clearance Power supply：
Power consumption: Load bearing:
Model No
TN-BC350-(L)
TN-BC460-(L)
TN-BC250D-(L) (Dual Lane)
Machine Dimension (L x W x H)
(L) x 760 x 920
(L) x 870 x 920
(L) x 1020 x 920
Weight
70 ~100kg
90~130kg
110kg~130kg
PCB L x W ( Min~Max )
(60 x 60) ~ ((L)x350)mm
(60 x 60) ~ ((L) x 460)mm
(60 x 60) ~ ( (L) x 350)mm
PCB Thickness
0.6mm ~ 4.5mm
0.6mm ~ 4.5mm
0.6mm ~ 4.5mm
Fixed rail to front dimension(A)
230mm
230mm
230mm

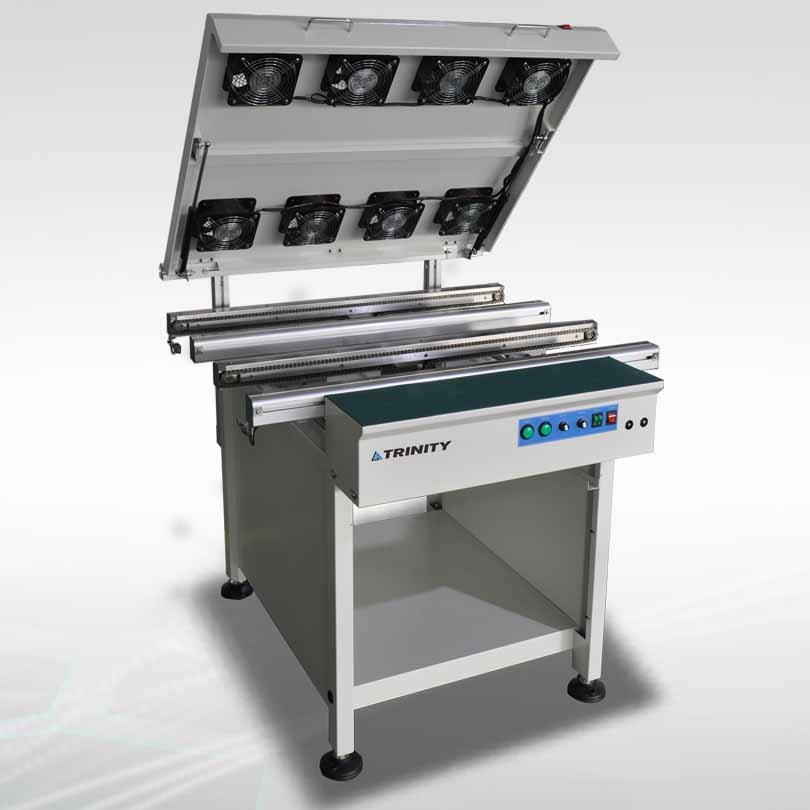

1200mm Double track Linking Conveyor Series
- Product Description
- Product Video
-
Descriptions
This unit is used to link between production machines or board handling units.
Standard features Panasonic PLC Program control. Start / Stop push button.
Anti-static conveyor belt. Easy way of belt replacement.
Heavy bottom design to prevent shifting. PCB precise stopping in position.
Smooth and parallel width adjustment.(lead screw) SMEMA compatible.
Technical specifications
Transport height: Transfer direction: Operation side: Fixed rail: Interface: Conveyer concept: Belt speed
PCB edge support: Components clearance Power supply：
Power consumption: Load bearing:
Model No
TN-BC350-(L)
TN-BC460-(L)
TN-BC250D-(L) (Dual Lane)
Machine Dimension (L x W x H)
(L) x 760 x 920
(L) x 870 x 920
(L) x 1020 x 920
Weight
70 ~100kg
90~130kg
110kg~130kg
PCB L x W ( Min~Max )
(60 x 60) ~ ((L)x350)mm
(60 x 60) ~ ((L) x 460)mm
(60 x 60) ~ ( (L) x 350)mm
PCB Thickness
0.6mm ~ 4.5mm
0.6mm ~ 4.5mm
0.6mm ~ 4.5mm
Fixed rail to front dimension(A)
230mm
230mm
230mm
