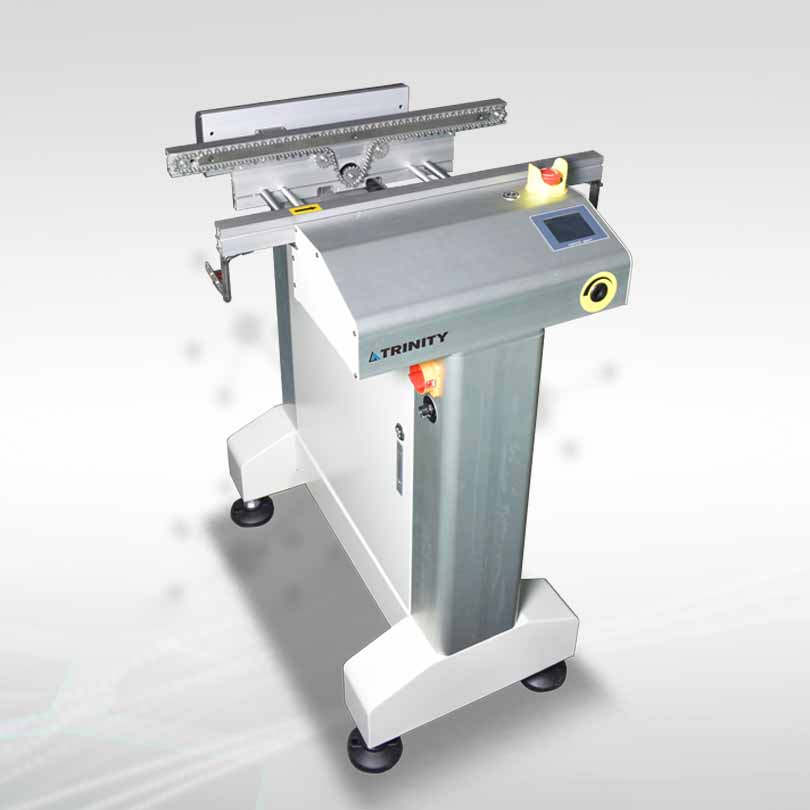

    The inspection conveyor is used when frequent visual  inspection of PCB’s is required in the PCB assembly line.


    Standard features


      Panasonic PLC Program control.  Overhead LED lighting.

    Start / Stop push button.  Anti-static conveyor belt.  Centre PCB stop position.

    Easy way of belt replacement.  Work and by-pass mode selectable.

    Heavy bottom design to prevent shifting.  PCB precise stopping in position.

    Smooth and parallel width adjustment.(lead screw)  SMEMA compatible.

    Options

    Non standard conveyor / segment lengths.  Eelectrical width adjustment.

    Dust cover.(customized length)

    Cooling system.(0.5m long 2fans / 1m long 4 fans or specify)  Other options available on request.


    Standard Length(L): 500, 600 , 1000 , 1500 , 2000 .

     Model No

    TN-BCI350-(L)

    TN-BCI460-(L)

    TN-BCI250D-(L) (Dual Lane)

    Machine Dimension (L x W x H)

    (L) x 710 x 920

    (L) x 82x 920

    (L1020 x 910

    Weight

    70~100kg

    90~130kg

    110kg ~ 130kg

    PCB    L x W  Min~Max )

    (60 x 60) ~ ((L) x 350)mm

    (60 x 60)~((L) x 460)mm

    (60 x 60) ~ ((L) x 350)mm

    PCB Thickness

    0.6mm 4.5mm

    0.6mm 4.5mm

    0.6mm 4.5mm

    Fixed rail to front dimension(A)

    230mm

    230mm

    230mm



500mm High Version Conveyor Series

  • Product Description
  • Product Video
  • Descriptions

    The inspection conveyor is used when frequent visual  inspection of PCB’s is required in the PCB assembly line.


    Standard features


      Panasonic PLC Program control.  Overhead LED lighting.

    Start / Stop push button.  Anti-static conveyor belt.  Centre PCB stop position.

    Easy way of belt replacement.  Work and by-pass mode selectable.

    Heavy bottom design to prevent shifting.  PCB precise stopping in position.

    Smooth and parallel width adjustment.(lead screw)  SMEMA compatible.

    Options

    Non standard conveyor / segment lengths.  Eelectrical width adjustment.

    Dust cover.(customized length)

    Cooling system.(0.5m long 2fans / 1m long 4 fans or specify)  Other options available on request.


    Standard Length(L): 500, 600 , 1000 , 1500 , 2000 .

     Model No

    TN-BCI350-(L)

    TN-BCI460-(L)

    TN-BCI250D-(L) (Dual Lane)

    Machine Dimension (L x W x H)

    (L) x 710 x 920

    (L) x 82x 920

    (L1020 x 910

    Weight

    70~100kg

    90~130kg

    110kg ~ 130kg

    PCB    L x W  Min~Max )

    (60 x 60) ~ ((L) x 350)mm

    (60 x 60)~((L) x 460)mm

    (60 x 60) ~ ((L) x 350)mm

    PCB Thickness

    0.6mm 4.5mm

    0.6mm 4.5mm

    0.6mm 4.5mm

    Fixed rail to front dimension(A)

    230mm

    230mm

    230mm
