Descriptions

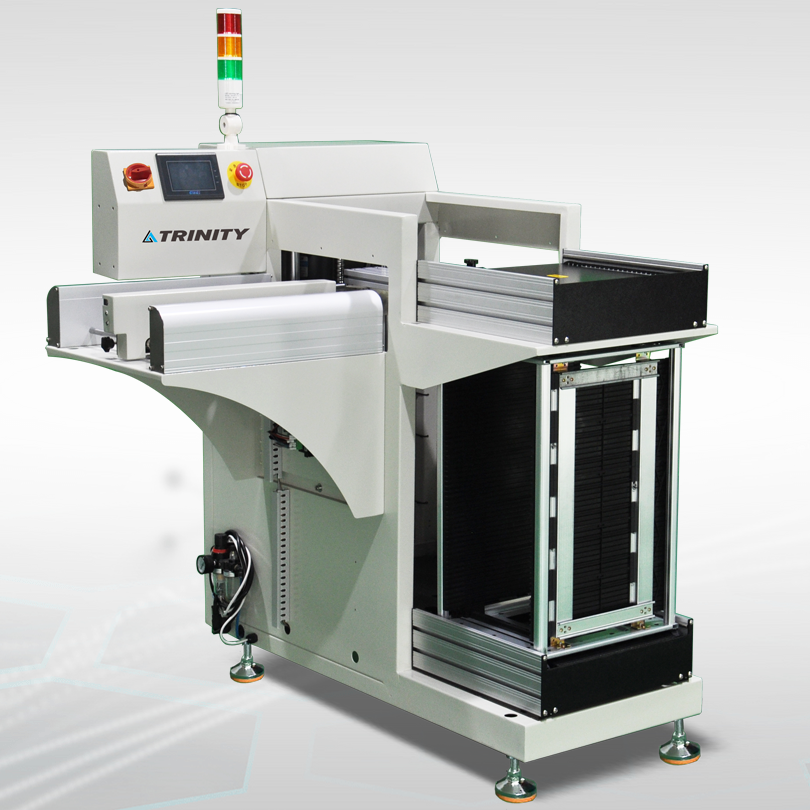

The unit provides automatic magazine change-over for continuous line unloading. PCB are collected from an upstream pusher conveyor and pushed into the magazine. Full magazines are offl oaded at an ergonomic low level.
Standard features PanasonicnPLC Program control. Selectable pitch settings.
Towerlight display for machine status. Automatic magazine change-over
Flexible platform to suit standard magazines. Conveyor width adjustment using hand crank. Regulated pressure on attached pneumatic pusher. Pusher position adjustable to centre of the magazine.
SMEMA compatible.
Options
Additional magazine capacity.
Enclosed construction improve level of safety. Width adjustable magazine conveyor(s).
Other options available on request.
Model No
TN-LUL250
TN-LUL330
TN-LUL390
TN-LUL460
Machine Dimension (L x W x H)
1065 x 1140 x 1200mm
1270 x 1140 x 1200mm
1410 x 1600 x 1200mm
1500 x 1600 x 1200mm
Weight
126kg
146kg
166kg
186kg
PCB L x W ( Min~Max )
(60 x 60)~(350 x 250)mm
(60 x 60)~(455 x 330)mm
(60 x 60)~(530 x 390)mm
(60 x 60)~(530x 460)mm
PCB Thickness
0.6mm – 4.5mm
0.6mm – 4.5mm
0.6mm – 4.5mm
0.6mm – 4.5mm
Magazine Dimensions (max.)
335 x 320 x 563
460 x 400 x 563
535 x 460 x 570
535 x 530 x 570
Fixed rail to front dimension(A)
380mm
380mm
390mm
390mm
Automatic 90degree Magazine Unloader Series
- Product Description
- Product Video
-
Descriptions
The unit provides automatic magazine change-over for continuous line unloading. PCB are collected from an upstream pusher conveyor and pushed into the magazine. Full magazines are offl oaded at an ergonomic low level.
Standard features PanasonicnPLC Program control. Selectable pitch settings.
Towerlight display for machine status. Automatic magazine change-over
Flexible platform to suit standard magazines. Conveyor width adjustment using hand crank. Regulated pressure on attached pneumatic pusher. Pusher position adjustable to centre of the magazine.
SMEMA compatible.
Options
Additional magazine capacity.
Enclosed construction improve level of safety. Width adjustable magazine conveyor(s).
Other options available on request.
Model No
TN-LUL250
TN-LUL330
TN-LUL390
TN-LUL460
Machine Dimension (L x W x H)
1065 x 1140 x 1200mm
1270 x 1140 x 1200mm
1410 x 1600 x 1200mm
1500 x 1600 x 1200mm
Weight
126kg
146kg
166kg
186kg
PCB L x W ( Min~Max )
(60 x 60)~(350 x 250)mm
(60 x 60)~(455 x 330)mm
(60 x 60)~(530 x 390)mm
(60 x 60)~(530x 460)mm
PCB Thickness
0.6mm – 4.5mm
0.6mm – 4.5mm
0.6mm – 4.5mm
0.6mm – 4.5mm
Magazine Dimensions (max.)
335 x 320 x 563
460 x 400 x 563
535 x 460 x 570
535 x 530 x 570
Fixed rail to front dimension(A)
380mm
380mm
390mm
390mm
