Descriptions

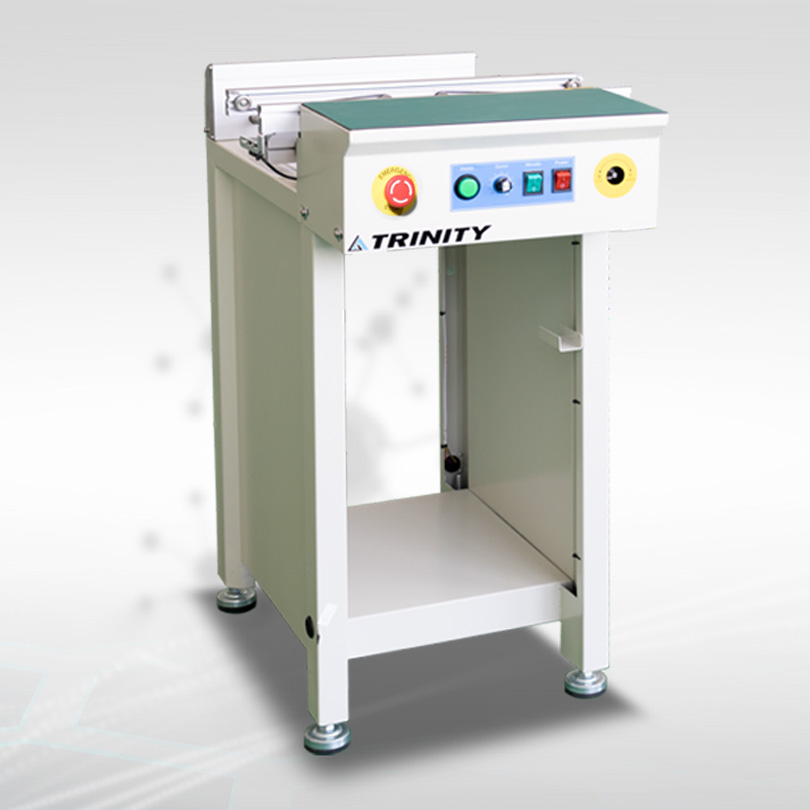

The inspection conveyor is used when frequent visual inspection of PCB’s is required in the PCB assembly line.
Standard features
Panasonic PLC Program control. Overhead LED lighting.
Start / Stop push button. Anti-static conveyor belt. Centre PCB stop position.
Easy way of belt replacement. Work and by-pass mode selectable.
Heavy bottom design to prevent shifting. PCB precise stopping in position.
Smooth and parallel width adjustment.(lead screw) SMEMA compatible.
Options
Non standard conveyor / segment lengths. Eelectrical width adjustment.
Dust cover.(customized length)
Cooling system.(0.5m long 2fans / 1m long 4 fans or specify) Other options available on request.
Model No | TN-BCI350-(L) | TN-BCI460-(L) | TN-BCI250D-(L) (Dual Lane) |
Machine Dimension (L x W x H) | (L) x 710 x 920 | (L) x 820 x 920 | (L) x 1020 x 910 |
Weight | 70~100kg | 90~130kg | 110kg ~ 130kg |
PCB L x W ( Min~Max ) | (60 x 60) ~ ((L) x 350)mm | (60 x 60)~((L) x 460)mm | (60 x 60) ~ ((L) x 350)mm |
PCB Thickness | 0.6mm ~ 4.5mm | 0.6mm ~ 4.5mm | 0.6mm ~ 4.5mm |
Fixed rail to front dimension(A) | 230mm | 230mm | 230mm |
