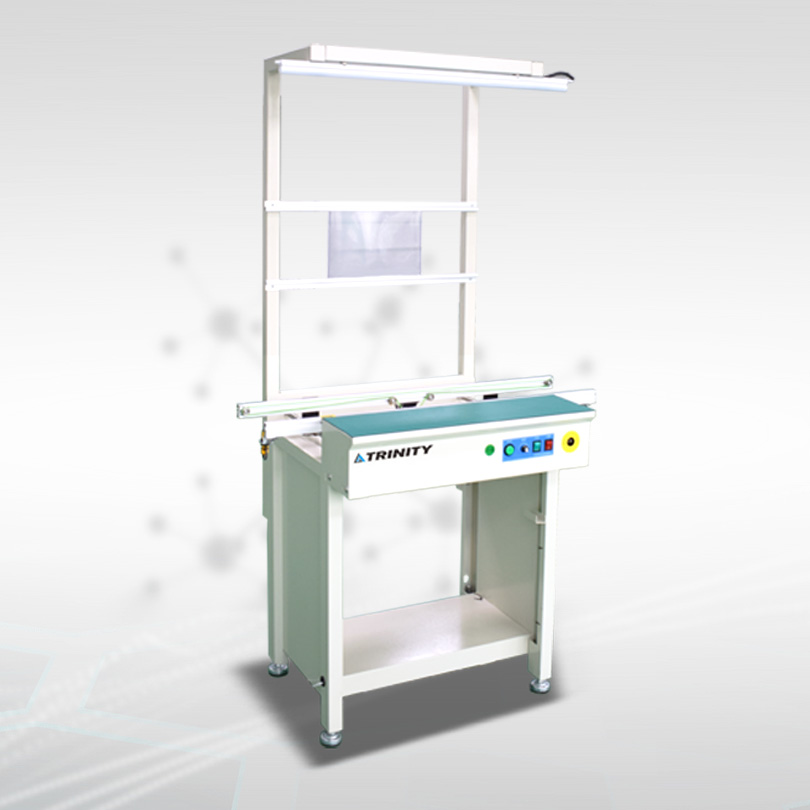

    This unit is used to link between production machines or  board handling units.


    Standard features   Panasonic PLC Program control.  Start / Stop push button.

    Anti-static conveyor belt.  Easy way of belt replacement.

    Heavy bottom design to prevent shifting.  PCB precise stopping in position.

    Smooth and parallel width adjustment.(lead screw)  SMEMA compatible.


    Technical specifications

    Transport height:  Transfer direction:  Operation side:  Fixed rail:  Interface:  Conveyer concept:  Belt speed

    PCB edge support:  Components clearance  Power supply:

    Power consumption:  Load bearing:

     Model No

    TN-BC350-(L)

    TN-BC460-(L)

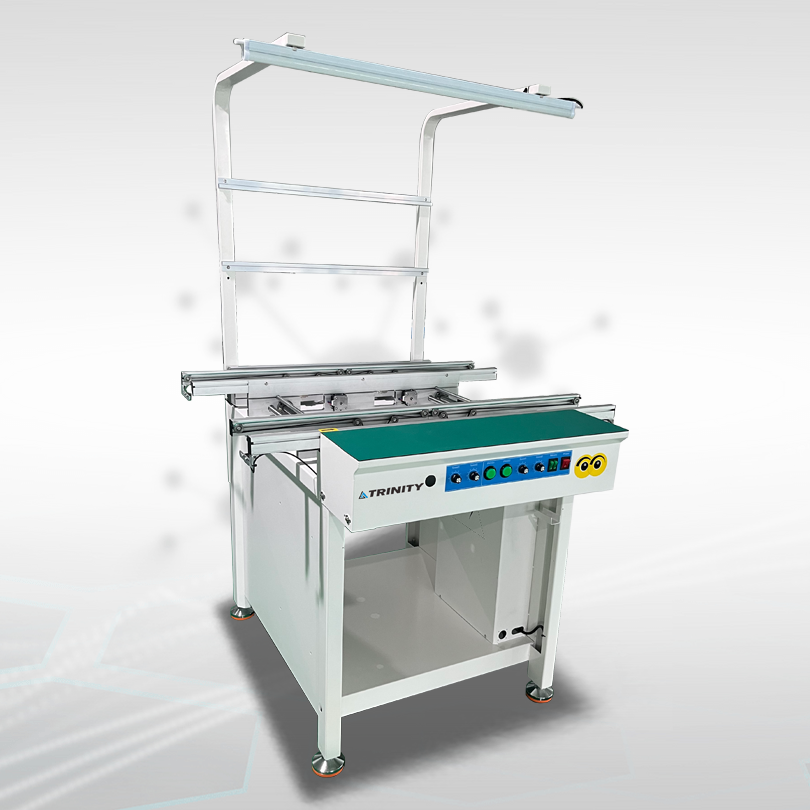

    TN-BC250D-(L) (Dual Lane)

    Machine Dimension (L x W x H)

    (L) x 760 x 920

    (L) x 87x 920

    (L) x 102x 920

    Weight

    70 ~100kg

    90~130kg

    110kg~130kg

    PCB L x W ( Min~Max )

    (60 x 60) ~ ((L)x350)mm

    (60 x 60) ~ ((L) x 460)mm

    (60 x 60) ~ ( (L) x 350)mm

    PCB Thickness

    0.6mm ~ 4.5mm

    0.6mm ~ 4.5mm

    0.6mm  4.5mm

    Fixed rail to front dimension(A)

    230mm

    230mm

    230mm
