Descriptions

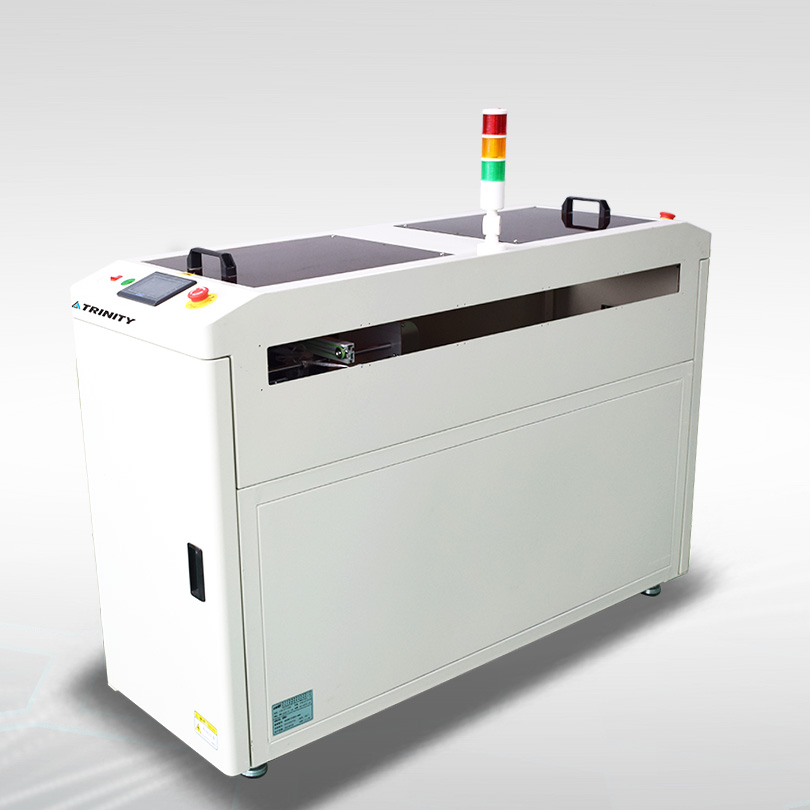

The shuttle conveyor is used for transporting boards from one line into two lines or vice versa. The orientation of the board is not changed during traversing.
Standard features PanasonicnPLC Program control. By-pass mode selectable.
Customized traversing distance. Towerlight display for machine status. Frequency controlled traversing speed.
Enclosed design ensures highest level of safety. Automatic conveyor width adjustment .
SMEMA compatible.
Technical specifications
Transport height:910+30mm
Transfer direction:Left to right
Operation side:Front of the machine
Fixed rail:Front of the machine
Interface：SMEMA
Conveyer concept:ESD flat belt
Beltspeed：0.5-20m/min adjustable
PCB edge support:4mm
Power supply:230 VAC/50 Hz/1 Ph
Power consumption:250VA max.or specify
Cycle time:Depends on traversing distance
Number of Cart：Single cart transportation
Options
Customized traversing distance.
Good - or bad board separation. Servo drive upgrade for shortened Cycle time. Cantilevered input- or output conveyor .(length 500 mm) Other options available on request.
Model No
TN-PY350-(W)
TN-PY460-(W)
TN-PY350D-(W) (2carts)
Machine Dimension (L x W x H)
500x (W) x 1100
600x (W) x 1100
500x (W) x 1100
Weight
120~160kg
130~170kg
160kg ~ 220kg
PCB L x W ( Min~Max )
(60 x 60) ~ (460 x 350)mm
(60 x 60)~(530 x 460)mm
(60 x 60) ~ 460 x 350)mm
PCB Thickness
0.6mm ~ 4.5mm
0.6mm ~ 4.5mm
0.6mm ~ 4.5mm
Fixed rail to front dimension(A)
181mm
181mm
181mm
