Descriptions

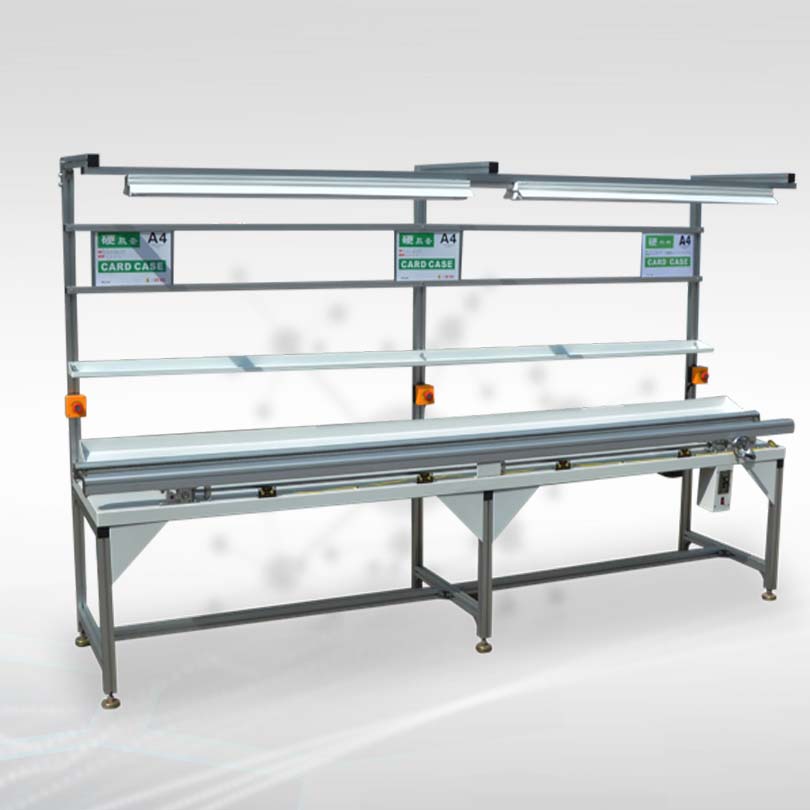

This unit is used to transport PCB and pallet for electronical production assembly line.
Standard features
Aluminum conveying guide rail
Conveyor width adjustment using hand crank Conveying motor driven by invertor Equipped with LED light
Equipped with 2 component trays Equipped with process card bracket 35B pin chain(5mm)
Technical specifications
Transport height: 800±20mm or Specify
Transfer direction: Left to right
Operation side: Front of the machine
Conveyer concept: Pin chain
Belt speed：0-5m/min adjustable
Power supply： 220 VAC/50 Hz/1 Ph
Power consumption:150VA max or specify
Options
Manual stop switch button. ESD ground socket.
Insertion Conveyor
- Product Description
- Product Video
-
Descriptions
This unit is used to transport PCB and pallet for electronical production assembly line.
Standard features
Aluminum conveying guide rail
Conveyor width adjustment using hand crank Conveying motor driven by invertor Equipped with LED light
Equipped with 2 component trays Equipped with process card bracket 35B pin chain(5mm)
Technical specifications
Transport height: 800±20mm or Specify
Transfer direction: Left to right
Operation side: Front of the machine
Conveyer concept: Pin chain
Belt speed：0-5m/min adjustable
Power supply： 220 VAC/50 Hz/1 Ph
Power consumption:150VA max or specify
Options
Manual stop switch button. ESD ground socket.
