Key words
- Product Description
- Product Video
-
Descriptions

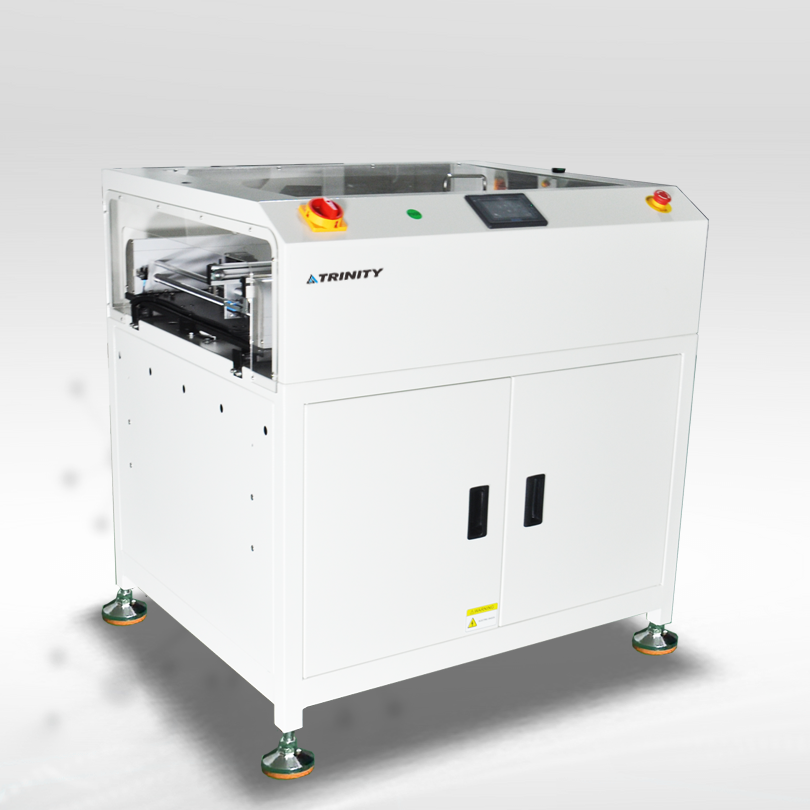

The unit provides a 'normal open' passage in a PCB assembly line. An integrated conveyor segment slides across the opening to deliver PCB to downstream machine.
Standard features
PanasonicnPLC Program control.
enclosed design.
Normal Opened
Electrically driven for smooth extension and retraction.
Smooth and parallel width adjustment.(lead screw)
SMEMA compatible.
Technical specifications
Transport height: 910mm ±30mm
Transfer direction: Left to right
Operation side: Front of the machine
Fixed rail: Front of the machine
Interface: SMEMA
Conveyer concept: ESD flat belt
Belt speed 0.5-20m/min adjustable
PCB edge support: 4mm
Components clearance: Bottom 30 mm or specify
Power supply: 230 VAC/50 Hz/1 Ph
Power consumption: 100VA max. or specify
Machine cycle time: ± 12 seconds
Passage way: 750mm or specify
Load bearing: 2kg/PCB
Options
Passageway length is customized
Automatic width adjustment (set in touchscreen).
Normal closed operation.
(750 mm passage way) Other options available on request.
Model No
TN-TC350
TN-TC460

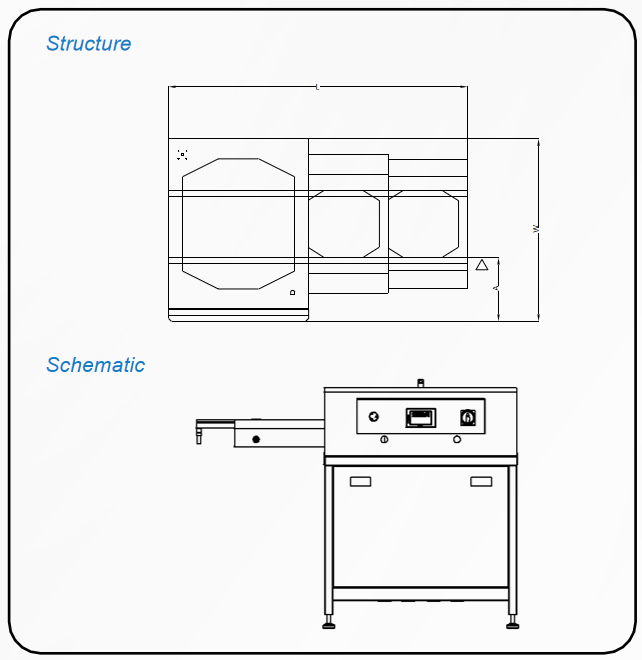

Machine Dimension (L x W x H)
1500 x 750x 1100
1500x 750x 1100
Weight
160kg
190kg
PCB L x W ( Min~Max )
(60 x 60)~(460 x 350)mm
(60 x 60)~(530 x 460)mm
PCB Thickness
0.6mm – 4.5mm
0.6mm – 4.5mm
Fixed rail to front dimension(A)
160mm
150mm
Telescopic Conveyor Series
- Product Description
- Product Video
-
Descriptions
The unit provides a 'normal open' passage in a PCB assembly line. An integrated conveyor segment slides across the opening to deliver PCB to downstream machine.
Standard features
PanasonicnPLC Program control.
enclosed design.
Normal Opened
Electrically driven for smooth extension and retraction.
Smooth and parallel width adjustment.(lead screw)
SMEMA compatible.
Technical specifications
Transport height: 910mm ±30mm
Transfer direction: Left to right
Operation side: Front of the machine
Fixed rail: Front of the machine
Interface: SMEMA
Conveyer concept: ESD flat belt
Belt speed 0.5-20m/min adjustable
PCB edge support: 4mm
Components clearance: Bottom 30 mm or specify
Power supply: 230 VAC/50 Hz/1 Ph
Power consumption: 100VA max. or specify
Machine cycle time: ± 12 seconds
Passage way: 750mm or specify
Load bearing: 2kg/PCB
Options
Passageway length is customized
Automatic width adjustment (set in touchscreen).
Normal closed operation.
(750 mm passage way) Other options available on request.
Model No
TN-TC350
TN-TC460
Machine Dimension (L x W x H)
1500 x 750x 1100
1500x 750x 1100
Weight
160kg
190kg
PCB L x W ( Min~Max )
(60 x 60)~(460 x 350)mm
(60 x 60)~(530 x 460)mm
PCB Thickness
0.6mm – 4.5mm
0.6mm – 4.5mm
Fixed rail to front dimension(A)
160mm
150mm
