Model No	TN-LGC350	TN-LGC460
Machine Dimension (L x W x H)	1500 x 550x 1100	1500x 660x 1100
Weight	160kg	190kg
PCB L x W ( Min~Max )	(60 x 60)~(460 x 350)mm	(60 x 60)~(530 x 460)mm
PCB Thickness	0.6mm – 4.5mm	0.6mm – 4.5mm

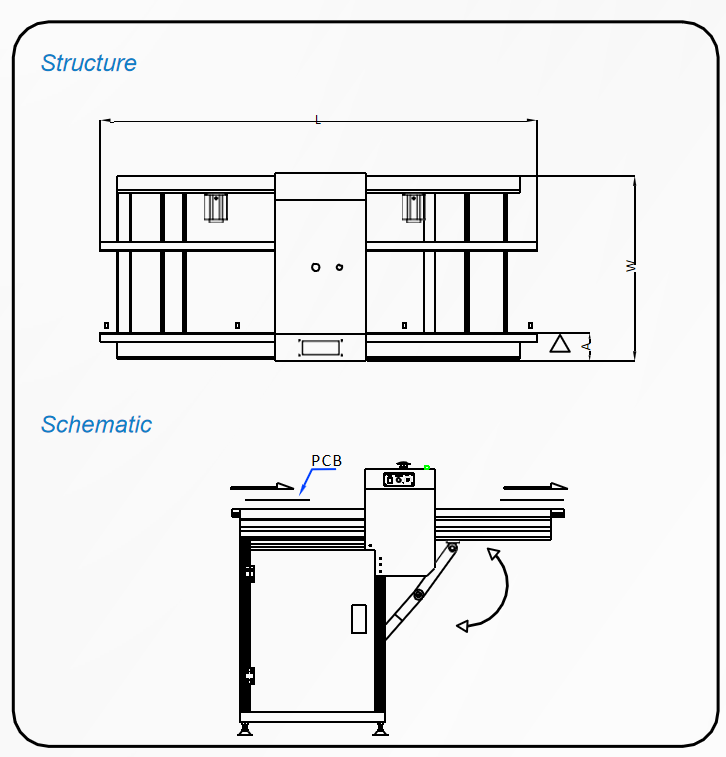

Fixed rail to front dimension(A)	75mm	75mm


Lowering Gate Conveyor Series

Descriptions

This unit is used when a passage way is required in a production line.

Standard features

Panasonic PLC Program control.

Locking cylinder to avoid opening during PCB transfer.

Ergonomic air pressure supported opening and closing.

Automatically gate lifting down by push button.

Smooth and parallel width adjustment.(lead screw)

SMEMA compatible.

Technical specifications

Transport height: 910mm ±30mm

Transfer direction: Left to right

Operation side: Front of the machine

Fixed rail: Front of the machine

Interface: SMEMA

Conveyer concept: ESD flat belt

Belt speed 0.5-20m/min adjustable

PCB edge support: 4mm

Components clearance: Bottom 30 mm or specify

Power supply: 230 VAC/50 Hz/1 Ph

Power consumption: 100VA max. or specify

Machine cycle time: ± 16 seconds

Passageway: 600mm or specify

Air supply: 4-6 bar

Air consumption: 20 ltr /lift max.

Load bearing: 2kg/PCB

Options

Electrical width adjustment.

Passageway length is customized

Other options available on request.

Model No	TN-LGC350	TN-LGC460
Machine Dimension (L x W x H)	1500 x 550x 1100	1500x 660x 1100
Weight	160kg	190kg
PCB L x W ( Min~Max )	(60 x 60)~(460 x 350)mm	(60 x 60)~(530 x 460)mm
PCB Thickness	0.6mm – 4.5mm	0.6mm – 4.5mm
Fixed rail to front dimension(A)	75mm	75mm
