Key words
- Product Description
- Product Video
-
Descriptions

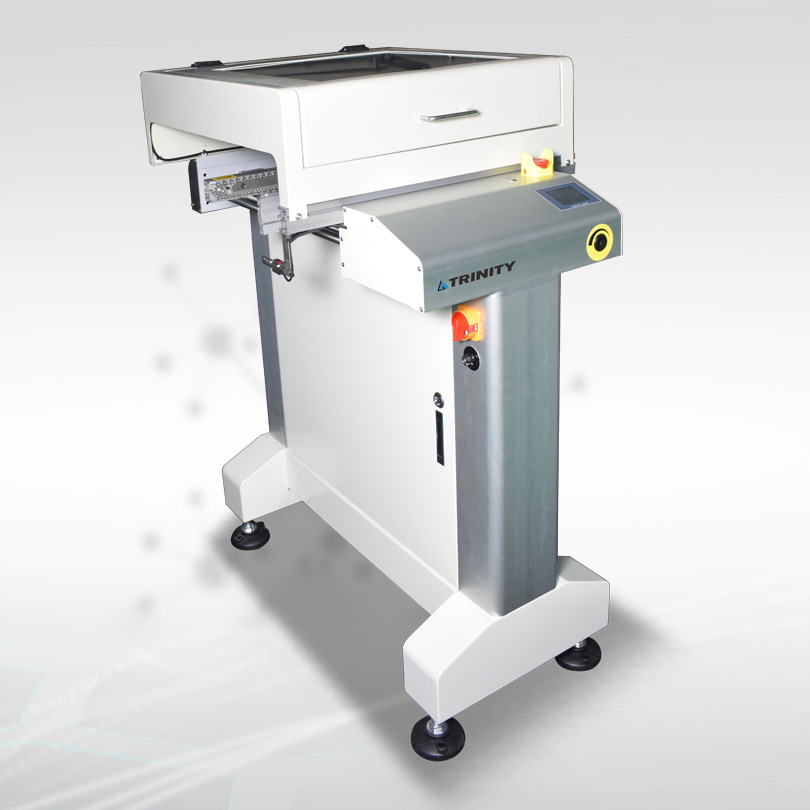

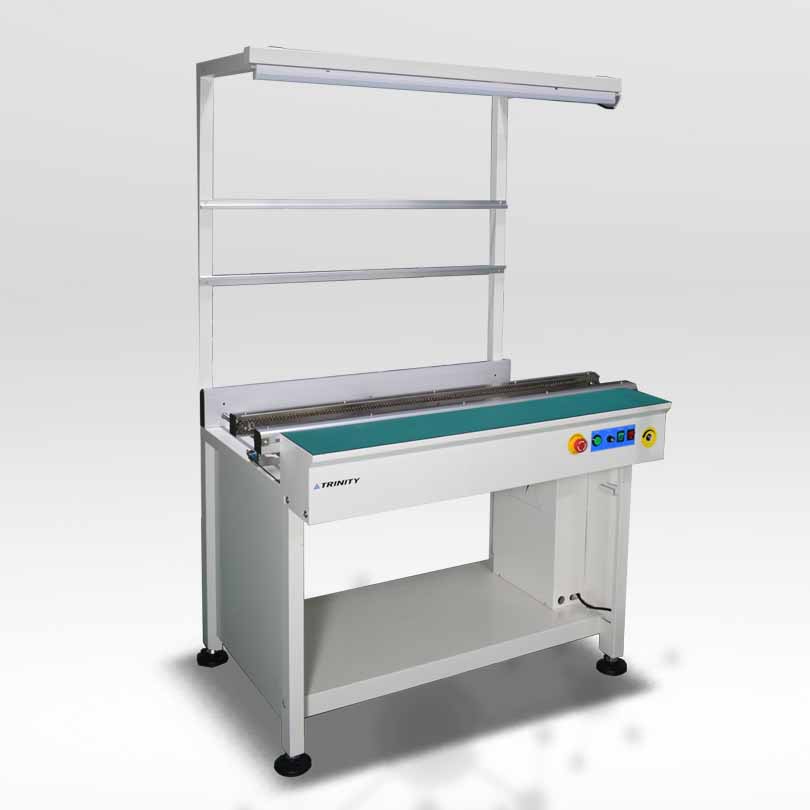

The inspection conveyor is used when frequent visual inspection of PCB’s is required in the PCB assembly line.
Standard features
Panasonic PLC Program control. Overhead LED lighting.
Start / Stop push button. Anti-static conveyor belt. Centre PCB stop position.
Easy way of belt replacement. Work and by-pass mode selectable.
Heavy bottom design to prevent shifting. PCB precise stopping in position.
Smooth and parallel width adjustment.(lead screw) SMEMA compatible.
Options
Non standard conveyor / segment lengths. Eelectrical width adjustment.
Dust cover.(customized length)
Cooling system.(0.5m long 2fans / 1m long 4 fans or specify) Other options available on request.
Standard Length(L): 500, 600 , 1000 , 1500 , 2000 .
Model No
TN-BCI350-(L)
TN-BCI460-(L)
TN-BCI250D-(L) (Dual Lane)
Machine Dimension (L x W x H)
(L) x 710 x 920
(L) x 820 x 920
(L) x 1020 x 910
Weight
70~100kg
90~130kg
110kg ~ 130kg
PCB L x W ( Min~Max )
(60 x 60) ~ ((L) x 350)mm
(60 x 60)~((L) x 460)mm
(60 x 60) ~ ((L) x 350)mm
PCB Thickness
0.6mm ~ 4.5mm
0.6mm ~ 4.5mm
0.6mm ~ 4.5mm
Fixed rail to front dimension(A)
230mm
230mm
230mm
High Version Pin Chain Inspection conveyor
- Product Description
- Product Video
-
Descriptions
The inspection conveyor is used when frequent visual inspection of PCB’s is required in the PCB assembly line.
Standard features
Panasonic PLC Program control. Overhead LED lighting.
Start / Stop push button. Anti-static conveyor belt. Centre PCB stop position.
Easy way of belt replacement. Work and by-pass mode selectable.
Heavy bottom design to prevent shifting. PCB precise stopping in position.
Smooth and parallel width adjustment.(lead screw) SMEMA compatible.
Options
Non standard conveyor / segment lengths. Eelectrical width adjustment.
Dust cover.(customized length)
Cooling system.(0.5m long 2fans / 1m long 4 fans or specify) Other options available on request.
Standard Length(L): 500, 600 , 1000 , 1500 , 2000 .
Model No
TN-BCI350-(L)
TN-BCI460-(L)
TN-BCI250D-(L) (Dual Lane)
Machine Dimension (L x W x H)
(L) x 710 x 920
(L) x 820 x 920
(L) x 1020 x 910
Weight
70~100kg
90~130kg
110kg ~ 130kg
PCB L x W ( Min~Max )
(60 x 60) ~ ((L) x 350)mm
(60 x 60)~((L) x 460)mm
(60 x 60) ~ ((L) x 350)mm
PCB Thickness
0.6mm ~ 4.5mm
0.6mm ~ 4.5mm
0.6mm ~ 4.5mm
Fixed rail to front dimension(A)
230mm
230mm
230mm
