Descriptions

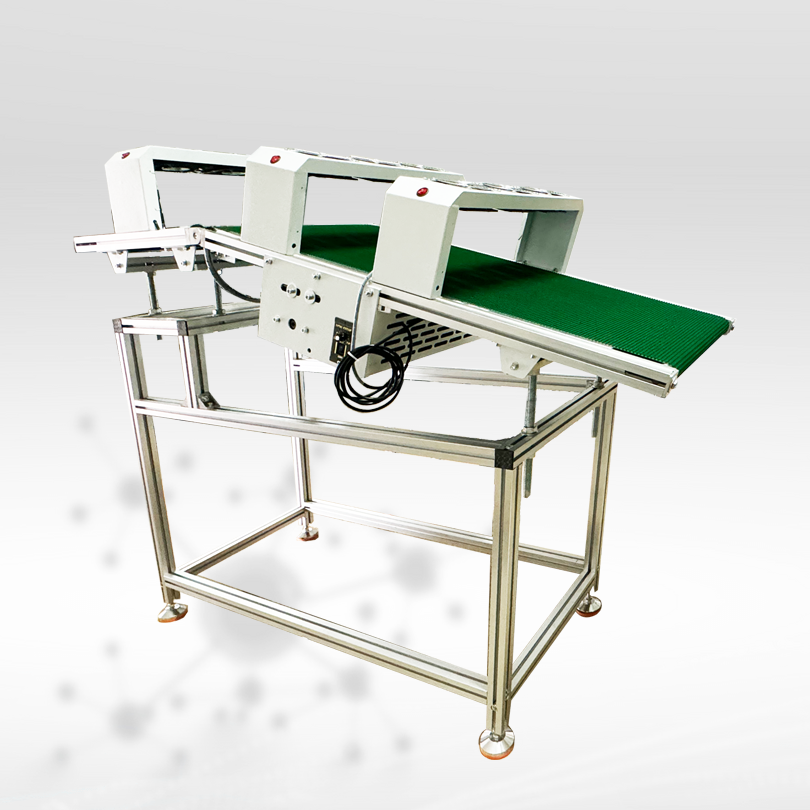

This conveyor is used to feed PCBs or pallets into wave soldering machine.
Standard features
800mm Aluminum conveying guide rail Pin chain (3 mm or 5 mm pins) Conveying motor with speed controller
Smooth and parallel width adjustment.(lead screw)
Technical specifications
Model No | TN-SP350W | TN-SP500W |
Machine Dimension (L x W x H) | 1200x 350 x 1300 | 1200x 500 x 1300 |
Weight | 135kg | 145kg |
PCB L x W ( Min~Max ) | (60 x 60) ~ (500 x 350)mm | (60 x 60)~(500 x 500)mm |
PCB Thickness | 0.6mm ~ 4.5mm | 0.6mm ~ 4.5mm |
Conveying height | 800±50mm | 800±50mm |
