Descriptions

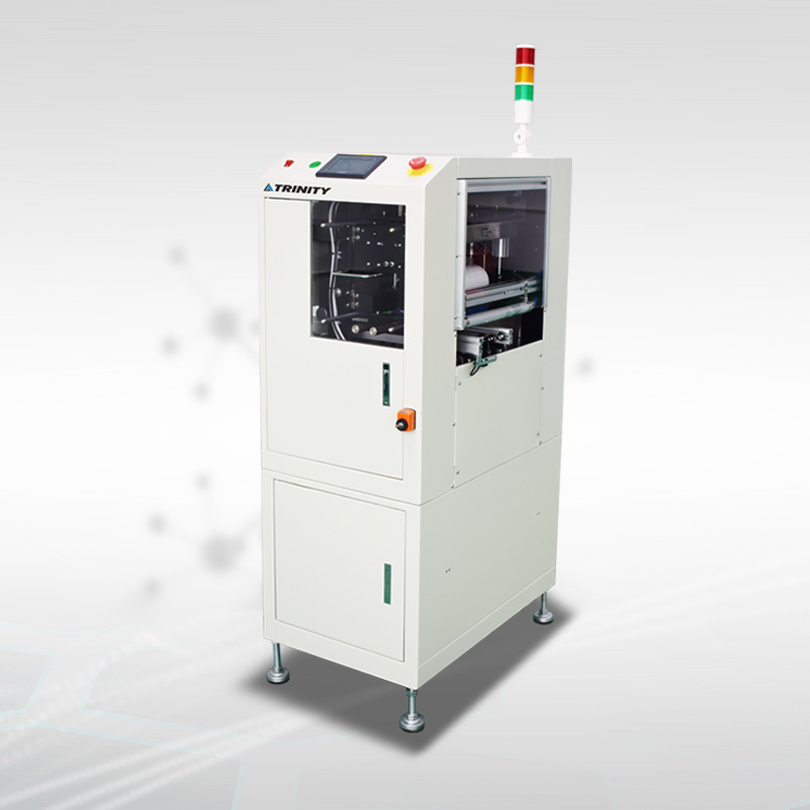

his unit can remove glass fiber, dust particles, etc, on topsurface of PCB before solder paste printing , and improveroduction yield. Especially suitable for PCB which isrounted extremey smalf components
Standard features
PanasonicnPLC Program control.
On-line automatic clean.
All types of dust can be removed
Adhesive clean rol removes all dust from rolls
onizer removes electric static on the PWB
Draw-out design for Easy changing of adhesive rolls.
Preset number of PCB & pre-warning counter to purge adhesive rolls.
Automatic conveyor width adjustment.
SMEMA compatible.
Technical specifications
Transport height:910mm+30mm
Transfer direction:Left to right
Operation side.Front of the machine
Fixed rail:Front of the machine
Interface: SMEMA
Conveyer concept:ESD flat belt
Belt speed:0.5-20m/min adjustable
PCB edge support:4mm
Power supply:230 VAC/50 Hz/1 Ph
Power consumption:150VA maxorspecify
Air supply:4-6 bar
Airconsumption:30 ltr/min max
Cycle time:+8 seconds
Options
Double side PCB processing.
Other options available on request
PCB SURFACE CLEANER SERIES
- Product Description
- Product Video
-
Descriptions

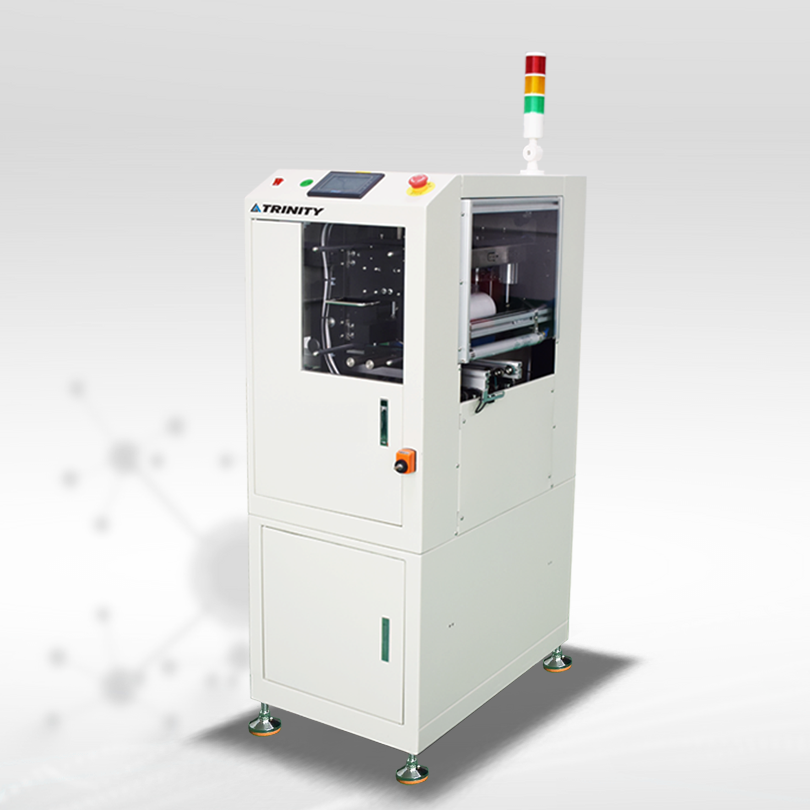

his unit can remove glass fiber, dust particles, etc, on topsurface of PCB before solder paste printing , and improveroduction yield. Especially suitable for PCB which isrounted extremey smalf components
Standard features
PanasonicnPLC Program control.
On-line automatic clean.
All types of dust can be removed
Adhesive clean rol removes all dust from rolls
onizer removes electric static on the PWB
Draw-out design for Easy changing of adhesive rolls.
Preset number of PCB & pre-warning counter to purge adhesive rolls.
Automatic conveyor width adjustment.
SMEMA compatible.
Technical specifications
Transport height:910mm+30mm
Transfer direction:Left to right
Operation side.Front of the machine
Fixed rail:Front of the machine
Interface: SMEMA
Conveyer concept:ESD flat belt
Belt speed:0.5-20m/min adjustable
PCB edge support:4mm
Power supply:230 VAC/50 Hz/1 Ph
Power consumption:150VA maxorspecify
Air supply:4-6 bar
Airconsumption:30 ltr/min max
Cycle time:+8 seconds
Options
Double side PCB processing.
Other options available on request
